Description
- Designed for Use with Symetrix Dante-enabled DSPs
- Software Setup Using Composer
- Low Cost Way to Increase System Analog I/O Capacity
- Ultra Low Latency – No Audible Delays
- Top of the Line Specifications
Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.

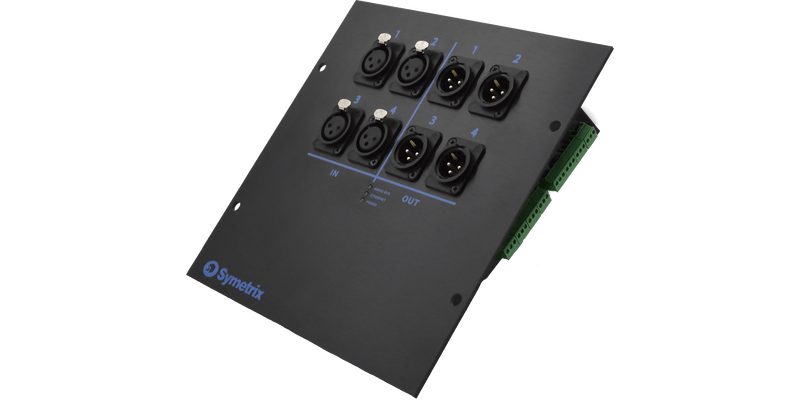

xIO Stage 4×4
- Premium 4 IN x 4 OUT Dante digital snake.
- Neutrik metal body DL series XLR connectors.
- 14 gauge A1008 steel construction.
-
Easy Installation
- Wall or floor mounted.
- Easily mounts in 8″ x 8″ x 4″ NEMA Junction Box.
xIn 4 | xOut 4 | xIO 4×4
- 1/2 Rack Form Factor.
- PoE – injectors included.
- xIn 4 – 4 analog mic/line inputs.
- xIO 4×4 – 4 analog mic/line inputs + 4 analog outputs.
- xOut 4 – 4 analog outputs.
- Optional rack and surface mounting kits sold separately.
xIn 12 | xOut 12
- Built-in network switches. Direct connections to Radius, Prism and Edge DSP’s.
- Internal power supplies.
- xIn 12 – 12 analog mic/line inputs.
- xOut 12 – 12 analog mic/line outputs.
